Different types of valve-gear
The locomotive shown here had no counterweights on the
valve-gear mechanism, so pulling the lever lifted the whole
linkage. You must prepare to take the weight before releasing
the catch, or you'll be pitched forward.
Different types of valve-gear |
|
| Practising the use of valve-gear control
(reverser control bar, or cut-off control, or Johnson bar)
on different types of locomotive.

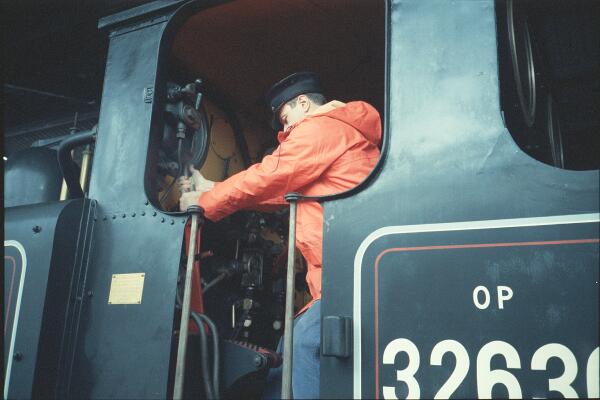

The locomotive shown here had no counterweights on the
valve-gear mechanism, so pulling the lever lifted the whole
linkage. You must prepare to take the weight before releasing
the catch, or you'll be pitched forward.
|
